How does a group chat application work? When you send a message, your phone doesn't establish a direct connection to every single person in the group. That would be chaotic and inefficient. Instead, your message goes to one central place—the chat server—and the server handles distributing it to everyone else. This "central hub" model is the essence of the Mediator Pattern, a design that prevents software from becoming a tangled "spaghetti code" mess.
🔍 The Discovery
Name of the Technology: The Mediator Pattern
Original Creator/Institution: A classic software design pattern, famously documented in the 1994 book "Design Patterns: Elements of Reusable Object-Oriented Software" by the "Gang of Four."
Year of Origin: circa 1994
License: A fundamental, public domain software design concept.
Instead of talking to each other directly, all the individual objects (called "Colleagues") only talk to the central Mediator object. The Mediator listens for events from the Colleagues and orchestrates the necessary actions, telling other Colleagues what to do. The button doesn't know the text field exists; it just tells the Mediator, "I was clicked." The Mediator then knows to tell the text field, "Validate yourself." This decouples all the objects from each other, as they no longer need to hold references to one another. They only need to know about the one, central Mediator.
🛠️ Ready for Today: Why This Isn't Just Theory

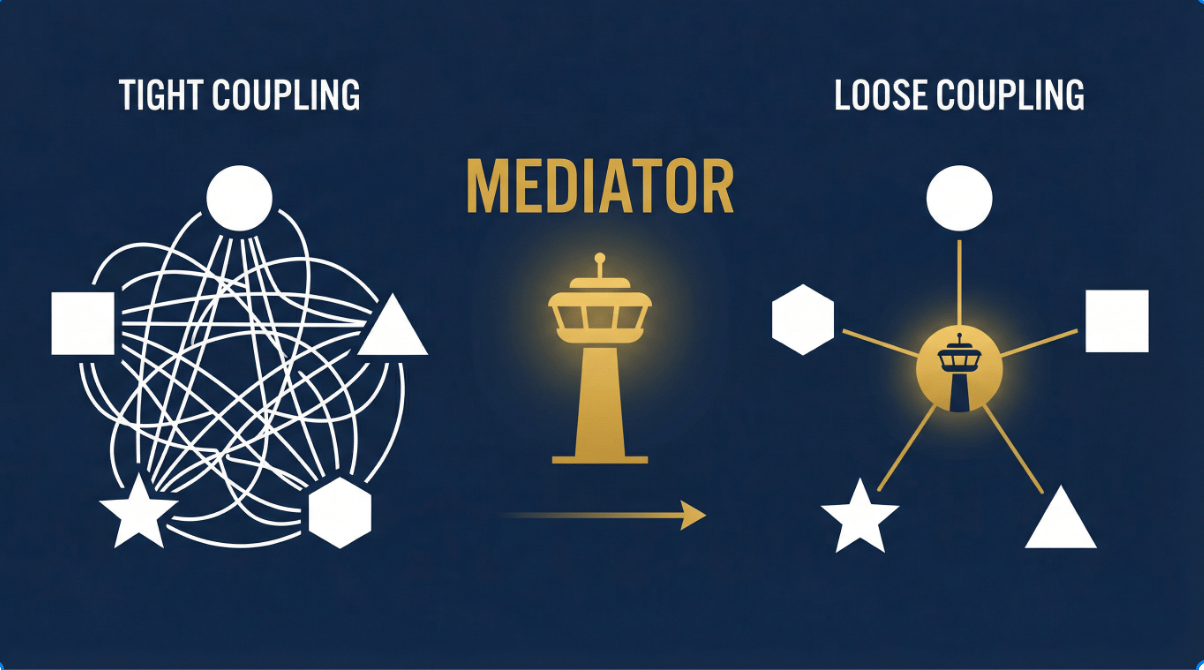

The Mediator pattern is a lifesaver for managing complex UI workflows and other systems where many components interact. It simplifies a "many-to-many" relationship mess into a clean "many-to-one" hub-and-spoke model, making the system easier to understand, maintain, and extend.
Status: The concept is in the public domain.
Implementations: This is a behavioral design pattern, not a library. It's a recipe for structuring code, especially popular in UI frameworks and application-level logic.
GUI Dialog Boxes: A complex dialog box with many controls (text fields, checkboxes, buttons) is a classic example. The dialog object itself acts as the Mediator. It listens to events from all the controls and coordinates their interactions (e.g., checking a box enables a button, typing in a field validates the form).
Chat Applications: In a group chat, you don't send your message to every single person directly. You send it to the chat server (the Mediator), which then distributes it to all the other participants (the Colleagues).
Model-View-Controller (MVC): The "Controller" in an MVC architecture often acts as a Mediator. It takes input from the "View" (the UI) and updates the "Model" (the data), keeping the View and Model from having to know about each other directly.
💡 Creative Applications (Ideas To Get You Thinking)
The "central controller" model is a powerful way to orchestrate complex interactions without creating tight dependencies.
Idea 1 (A "Smart Home" Hub): Instead of having your smart light switch talk directly to your smart blinds, they both talk to a central "Home Hub" Mediator. When you trigger the "Movie Night" scene on the switch, it notifies the hub. The hub then tells the lights to dim, the blinds to close, and the TV to turn on. This allows you to add new devices without reprogramming all the old ones.
Idea 2 (A "Wizard-Style" Form Builder): In a multi-step form (a "wizard"), the main wizard container can act as the Mediator. The "Next" button on Step 1 doesn't know about Step 2; it just tells the Mediator "I was clicked." The Mediator is responsible for validating Step 1's data, hiding its panel, and showing the panel for Step 2. This makes the logic for each step self-contained and reusable.
Idea 3 (A "Game Logic" Manager): In a game, various systems need to interact: the UI, the player's inventory, the quest log, and the sound system. A central
GameManagercan act as a Mediator. When a player picks up an item, the inventory system tells theGameManager. TheGameManagerthen tells the UI to display an icon, the quest log to check for updates, and the sound system to play a "pickup" sound.
🐰 The Rabbit Hole
Dive Deeper: The "Refactoring.Guru" website has another fantastic explanation, this time for the Mediator pattern. It uses the analogy of an air traffic control tower managing airplanes to perfectly illustrate how a central coordinator prevents chaos and direct dependencies.
